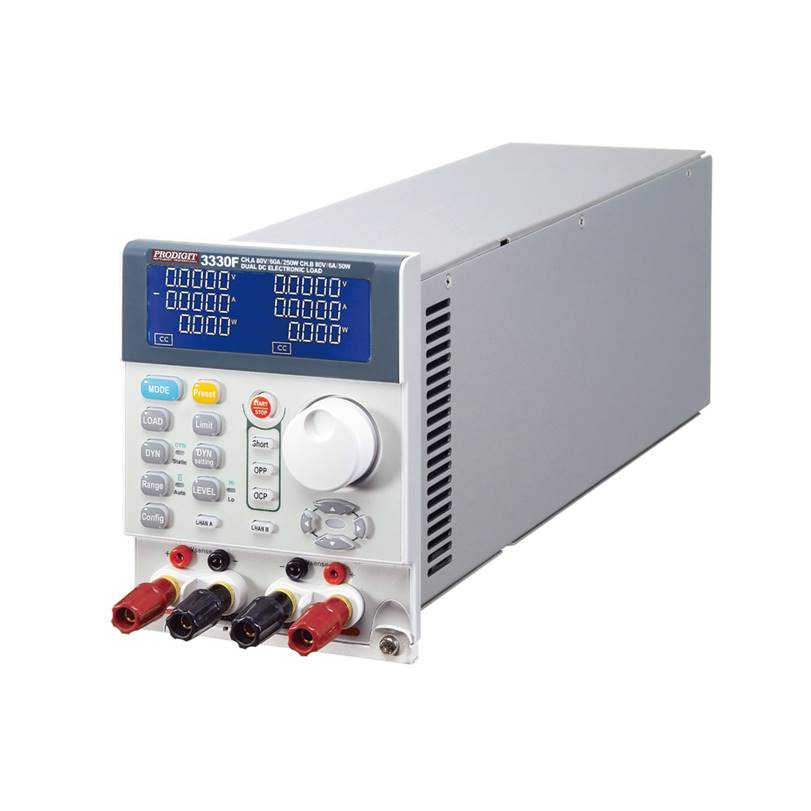

3330F Dual DC Electronic Load 80V,60A,250W*1



Description



l   3330F Series Dual DC Electronic Load is a two load unit in one module. Each 3330F Series module has its own control and display panel, CC/CR/CV/CP/ Dynamic modes, plug in 3300F with 150 sets Store/Recall memory which provides load set-up more efficientlyalso can be remote controlled via RS232EthernetUSB and GPIB interface.

l   SHORT time setting and SHORT_VH, SHORT_VL setting functionalso can measure Short Voltage and Current.

l   Dynamic can be simulated under CC, CP mode. The current Rise/Fall slew rate can be adjusted individually.

l   The additional OCP OPP test function will be more efficiency and accuracy on OCP, OPP testing.

l   Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display “ + “ or “ – “ is selectable and 150 sets Store / Recall larger memory is much advance features for each different application.

l   150 sets test parameter and status storage function can call the storage memory real time in accordance with the auto sequence requirement.



Features



l   5 digital V / A/W Meter.

l   Isolated two loads unit within one module.

l   Large LCD Displaysetting values can be adjusted by rotary knob or push button.

l   2 sets V. A. W. values can be displayed simultaneously.

l   OCPOPP test function.

l   Must be configured in 3302Fsingle channel mainframe〕、3305Ftwo channels mainframeor 3300Ffour channels mainframeand the mainframe with 150 sets Store / Recall memory.

l   Power ON status value can be set.

l   Flexible CC. CR, CV, CP, Dynamic and Short operation modes.

l   SHORT time setting and SHORT_VH, SHORT_VL setting function.

l   Protections against V, I, W, and °C.

l   Voltage meter display the polarity positive(” + ”)or negative(” - ”)is selectable.

l   SYNC. Load ON function.

l   Optional  Interface : GPIBRS232USBLAN.

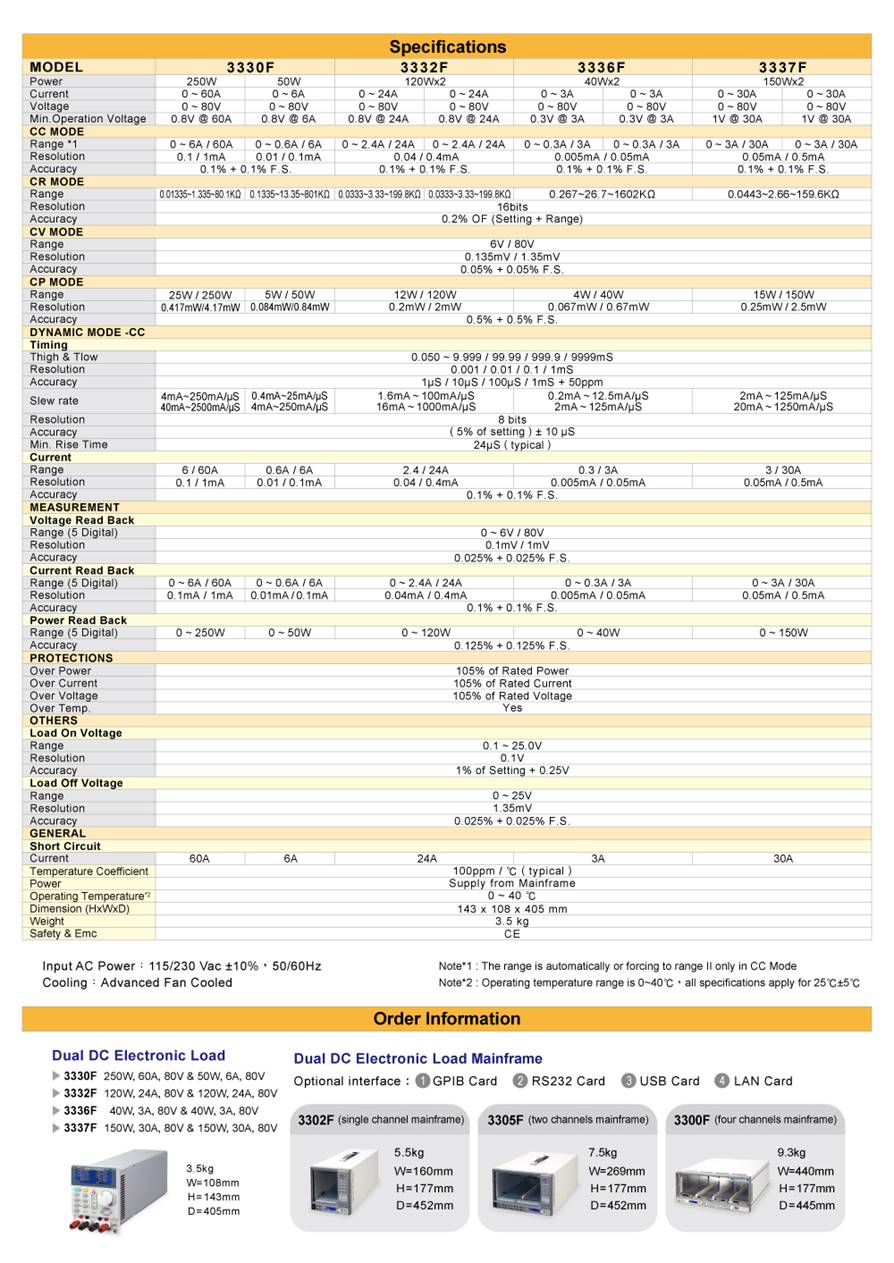

Specifications
